In-lobby vs drive-thru ordering kiosk hardware specs: Where the Hardware Requirements Actually Diverge

Editorial Team September 13, 2026

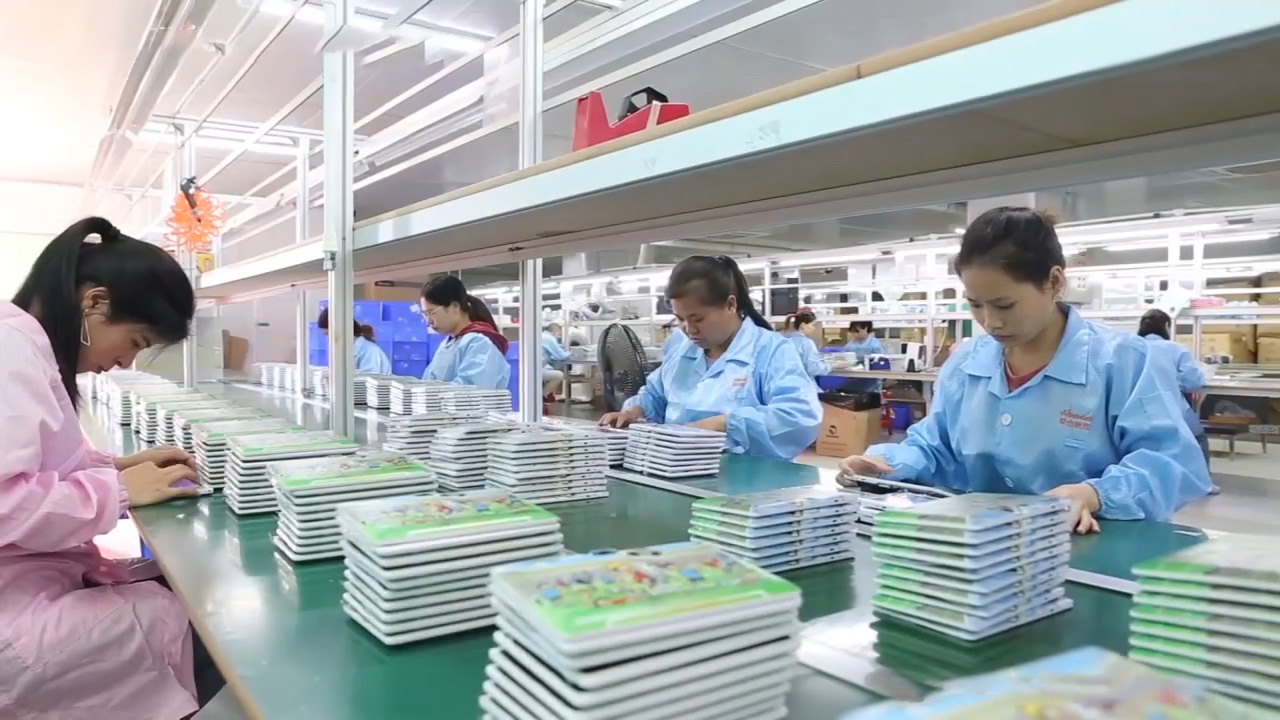

Industry reference image supplied by Wintouch

In-lobby vs drive-thru ordering kiosk hardware specs diverge on four dimensions: display size and form factor, brightness tier, enclosure rating, and cash-handling peripherals. Everything else — touch technology, compute, printer, payment terminal bay, cable management — is largely shared, which is why a mixed rollout can consolidate most of its bill of materials into a single order.

The Short Answer: Four Spec Dimensions That Actually Diverge

In short: an in-lobby ordering kiosk is an indoor, 15.6–21.5 inch transactional unit rated for a climate-controlled room, while a drive-thru lane unit is a hardened, sun-readable, IP-rated outdoor enclosure. The four specs that genuinely force separate line items are screen size and form factor, brightness, enclosure rating, and cash-handling peripherals.

Dimension	In-lobby typical	Drive-thru typical	Why it differs
Screen size	15.6–21.5 in, portrait-capable	21.5–32 in, landscape	Lane viewing distance and canopy geometry
Brightness	~250 nits indoor panel	High-brightness panel for ambient light	Direct sun and window-facing wash-out
Enclosure	Indoor chassis, tamper-resistant	IP54–IP65 / NEMA-rated	Rain, dust, condensation, temperature swing
Cash handling	Usually card-only	More often cash-accepting	Exposure to weather and unattended cash risk

Form Factor and Screen Size: Compact Transactional vs Advertising-Capable

A 21.5 inch vs 32 inch self-order kiosk form factor decision is driven by where the customer stands, not by preference. Industry specification data shows indoor restaurant ordering units clustering around 21.5, 23.8, 27 and 32 inch panels depending on installation type, with desktop, wall-mounted and floor-standing variants offered from the same family (^[2]). Drive-thru lane tablet form factor units sit at the other end of that range.

Form factor	Display	Footprint	Best fit
Countertop	15.6–21.5 in	Minimal	Tight lobby, low-volume sites
Pedestal (single)	21.5–27 in	Small	Standard lobby ordering
Pedestal (dual)	2 × 21.5–24 in	Medium	Peak-throughput lobbies
Floor-standing	27–32 in	Large	Promotional and wayfinding roles
Drive-thru lane unit	21.5–32 in	Lane-mounted	Menu visibility through glass

Why the split exists: in-lobby transactional sizes cluster at 15.6–21.5 inches because the customer stands roughly an arm’s length away and reaches into the screen, so a larger panel pushes the top of the interface beyond comfortable read distance. Larger 27–32 inch units serve a different job — visibility from across the room, advertising rotation, and menu browsing at a step or two back. Drive-thru units inherit the larger band because the customer is seated in a vehicle several feet away and views through a window. For touch ergonomics detail, see our breakdown of QSR drive-thru versus in-lobby menu display.

The screen-size decision also sets enclosure chassis dimensions, which is why it must be frozen first. For sourcing models, the OEM vs ODM depth for QSR fleet article covers how much of that chassis design a supplier will carry versus a buyer specifying.

Brightness and Display Legibility: The Sunlight Variable

Indoor vs outdoor kiosk display brightness is the spec most often under-specified on a mixed rollout. Standard indoor panels run at roughly 250 nits, which is adequate for a climate-controlled lobby but washes out badly when a unit faces a window or sits under a canopy edge where low sun angles strike the glass. High-brightness display legibility direct sunlight requirements typically push the panel into a substantially higher nit tier, paired with anti-glare or tempered glass and, in outdoor positions, a bonded or optically-treated surface to reduce internal reflection. Washed-out screens are a particularly common window-facing complaint operators report after installation.

Install position	Panel tier	Glass requirement
Interior lobby, no direct light	~250 nit indoor panel	Standard PCAP cover glass
Window-facing or glass-adjacent	High-brightness tier	Anti-glare / anti-reflective
Covered outdoor lane	High-brightness tier	Tempered, anti-glare
Exposed outdoor lane	High-brightness tier	Tempered, optically bonded

Enclosure Rating and Environmental Hardening: IP54 vs IP65 / NEMA

Drive-thru outdoor kiosk enclosure requirements turn on ingress protection. IP ratings describe resistance to solids and liquids on a two-digit scale: IP54 resists limited dust ingress and splashing water from any direction, while IP65 resists dust entirely and low-pressure water jets. NEMA type ratings cover similar ground in North American terms, with NEMA 3R and 4/4X corresponding broadly to outdoor weather-resistant and washdown-capable housings. That mapping is a well-established rating framework; which tier your lane actually needs depends on canopy coverage, prevailing wind direction and local rainfall — that judgment is inference, not a published rule.

Stressors to specify against for an outdoor lane unit:

Sealing at panel, printer slot, and payment bay cutouts
Ventilation vs ingress — filtered airflow that still sheds water
Condensation control across day-night temperature swings
Thermal range covering summer direct sun and winter cold starts
Physical mounting rated for wind loading and lane vibration
Tamper resistance at accessible fasteners and service doors

Cash Handling vs Card-Only: Where the Peripheral Count Diverges Most

Restaurant kiosk cash handling vs card only is the biggest bill-of-materials fork. A card-only build is short: touchscreen PC, 80mm thermal printer with auto-cutter, EMV/NFC payment bay, and cable management. A cash-accepting build adds a bill acceptor, coin dispenser or recycler, a cash vault, and a correspondingly larger enclosure volume to house the mechanism stack.

Card-only BOM	Cash-accepting build adds
PCAP touch PC	Bill acceptor
80mm thermal printer, auto-cutter	Coin dispenser / recycler
EMV/NFC payment bay	Locked cash vault
Cable management	Larger enclosure volume, service access

Decision rule: specify cash acceptance only where it demonstrably serves your customer base, because every added mechanism is another service point. Most North American transactions are now cashless, and industry coverage of restaurant self-service technology notes the customer-restaurant interface is shifting toward self-order kiosks, AI voice ordering and mobile-first pickup (^[1]). On the payment side, the unattended payment terminal and restaurant kiosk payment terminal integration must be specified as a matched pair — the cutout, mounting bracket and cable route are all terminal-model-specific.

Accessibility: Why It Applies Harder to the In-Lobby Unit

ADA reach range self-service kiosks provisions matter more in-lobby than in the lane for a structural reason: a lobby kiosk is on the public floor and serves walking and wheelchair-using customers directly, while a lane unit is reached from a vehicle. The practical consequence is that accessibility becomes a chassis-design input at specification stage rather than a retrofit, because reach geometry determines enclosure height, base width and printer and payment placement before tooling.

Design inputs to freeze:

Maximum forward and side reach to every interactive element
A curved or S-profile lower section serving shorter users and wheelchair users
Screen angle tuned against overhead lobby lighting
Consistent unit placement and orientation across every site in the rollout

Buyer Decision Table: In-Lobby vs Drive-Thru Spec Sheet

The following QSR kiosk procurement comparison is structured to drop straight into an RFQ as the divergence matrix for in-lobby vs drive-thru ordering kiosk hardware specs.

Spec	In-lobby unit	Drive-thru lane unit
Screen size band	15.6–21.5 in (27–32 in for promo)	21.5–32 in
Touch type	PCAP, 10-point, indoor cover glass	PCAP, 10-point, anti-glare/tempered
Brightness	~250 nit indoor tier	High-brightness tier
Enclosure rating	Indoor chassis, tamper-resistant	IP54–IP65 / NEMA outdoor
Compute	Android, Windows or Linux panel PC	Same — typically environmental spec, not platform change
Printer	80mm thermal, auto-cutter	80mm thermal, weather-protected slot
Payment	EMV/NFC bay, card-only common	EMV/NFC bay, terminal model locked with cutout
Cash handling	Often omitted	More commonly specified
Accessibility	Reach-range and profile design required	Vehicle-reach geometry governs
Mounting	Pedestal, countertop or floor stand	Lane mounting, wind and vibration rated

What stays shared across both units:

Touch controller and 10-point PCAP technology
Compute architecture and OS selection
Receipt printer model and roll size
Payment terminal family, if the same terminal is used in both positions
Software stack, remote management and content tooling

Specifying a Mixed Fleet: What to Lock Before Tooling

Before sheet metal goes to production, freeze these five decisions. Custom cutouts are routine at the pre-tooling stage and expensive afterward, which is a particularly common cost driver on a mixed rollout.

Target payment terminal model and its cutout. Lock the exact terminal, not the terminal class — bracket, bezel and cable route follow from it.
OS and compute selection. Android, Windows and Linux kiosk hardware configurations are all viable; the choice constrains driver support for every peripheral downstream. Compare platform trade-offs in our OEM vs ODM depth for the NA resilient QSR waiter fleet analysis.
Brightness tier per install position. Decide which lobby units face windows before ordering panels, not after.
Enclosure rating per install position. Map canopy coverage per site so lane units are not over- or under-rated. Self-service kiosk OEM ODM partners typically offer this as a configuration option in both indoor and outdoor builds (^[4]).
Whether one enclosure chassis serves both units. If it can, kiosk peripheral integration still differs, but tooling is amortized across the fleet. Kiosk manufacturers frequently develop custom peripheral solutions where no off-the-shelf component fits (^[3]).

Scope note: this comparison covers hardware divergence only. It does not address software licensing, POS integration, or food-safety considerations, all of which have their own specification paths. Sourcing mechanics for mixed fleets are covered in our procurement framework: OEM vs ODM depth for QSR fleet.

Content reviewed: 2026-09-13.

Evidence confidence

Confidence: Medium. This rating reflects cross-checking 4 sources across 4 independent domains. It measures evidence coverage, not certainty; verify safety-critical work against manufacturer instructions and local requirements.
